Electric Mouse Trap (AR03-1)

  • Humane, high voltage shock kills mice in minutes
  • Simply bait, place and electrocute
  • Dump the rodents into the trash for a safe, clean, no-see, no-touch disposal
  • Red LED flashing indicates low battery
  • Safety mode after 180 seconds high-voltage discharge, prevent mistake electric shock
  • Per fully charge can supply electronic shock for 40 times

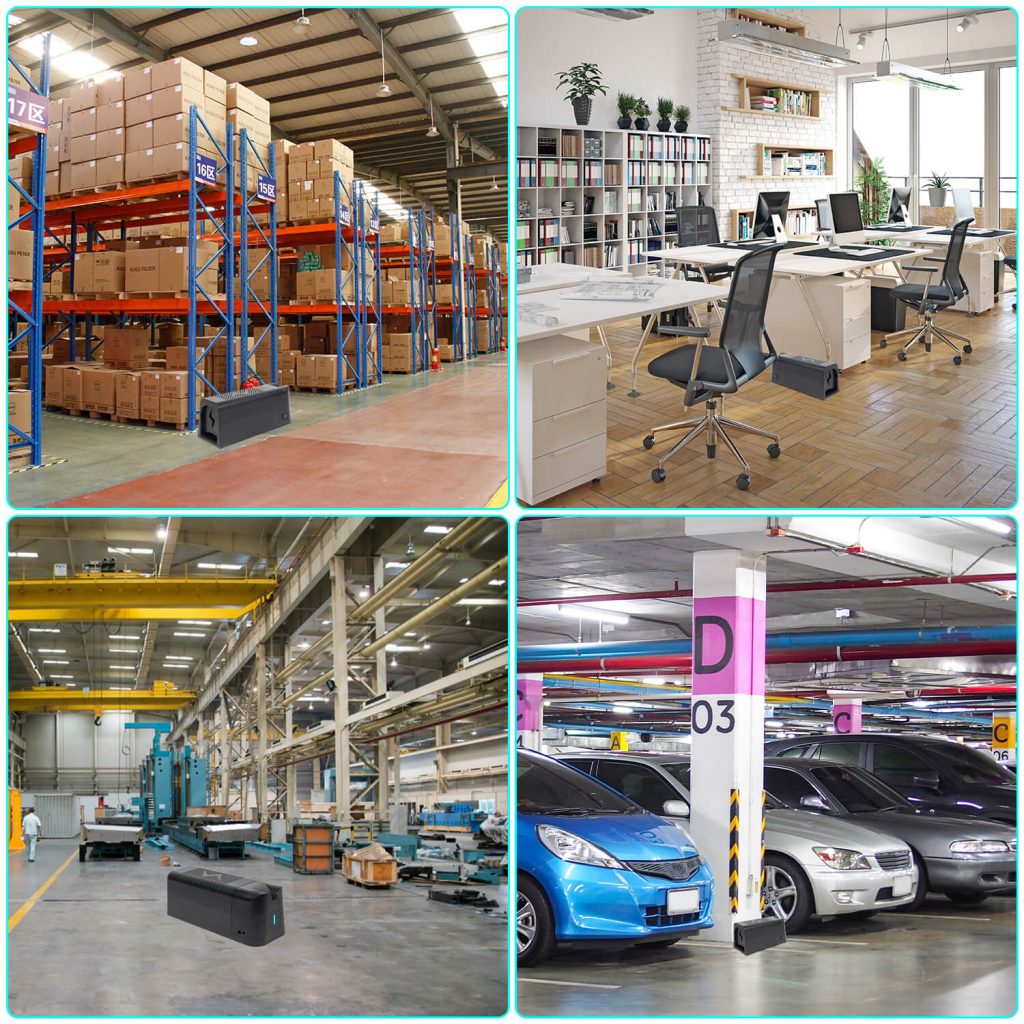

  • Suitable for indoors, warehouse, factories, office, hotel, car parks and any places that rats usually appear.


Note: We are looking for someone to develop this item together.

Works by giving a powerful electronic shock that kills the rat, an alternative to toxic chemicals and dangerous traps. Once the mice make contact with the plates, the circuit triggers a high-voltage shock, resulting in a fast, humane kill.

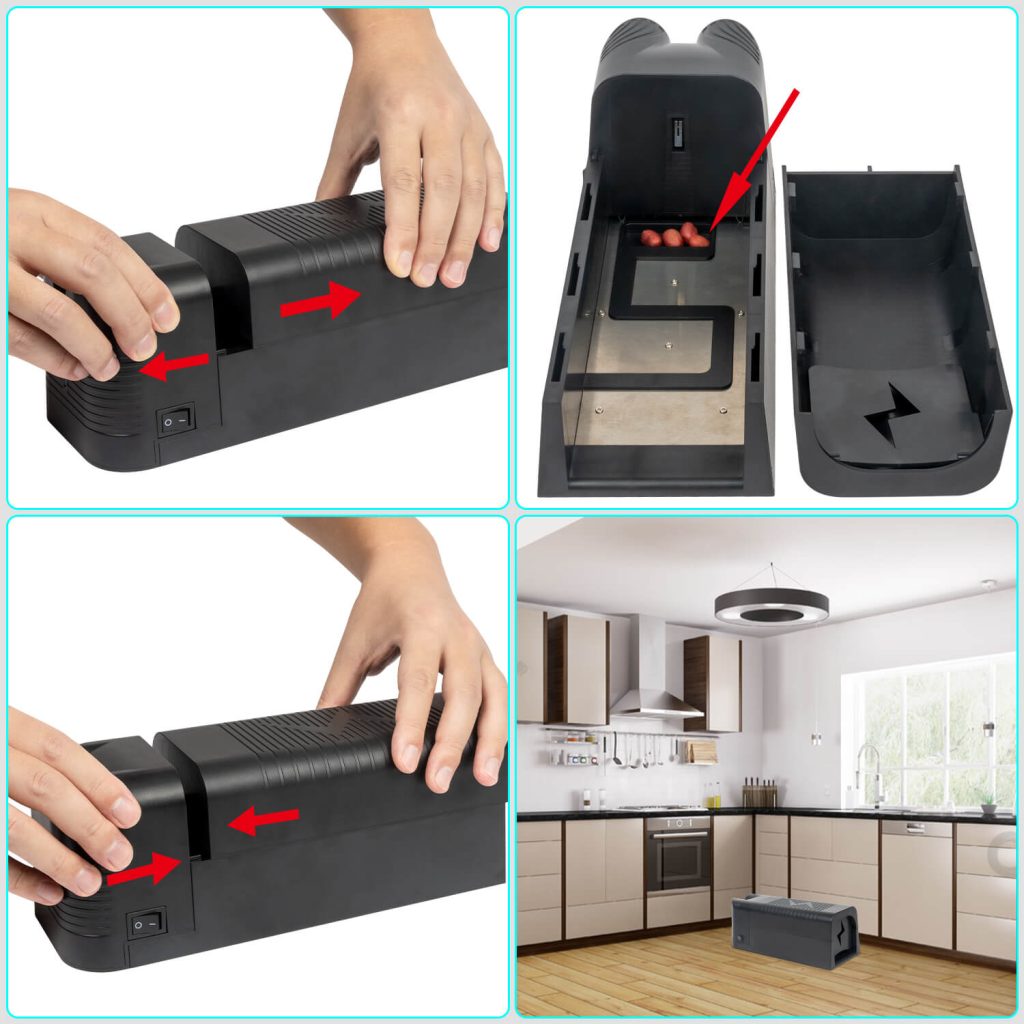

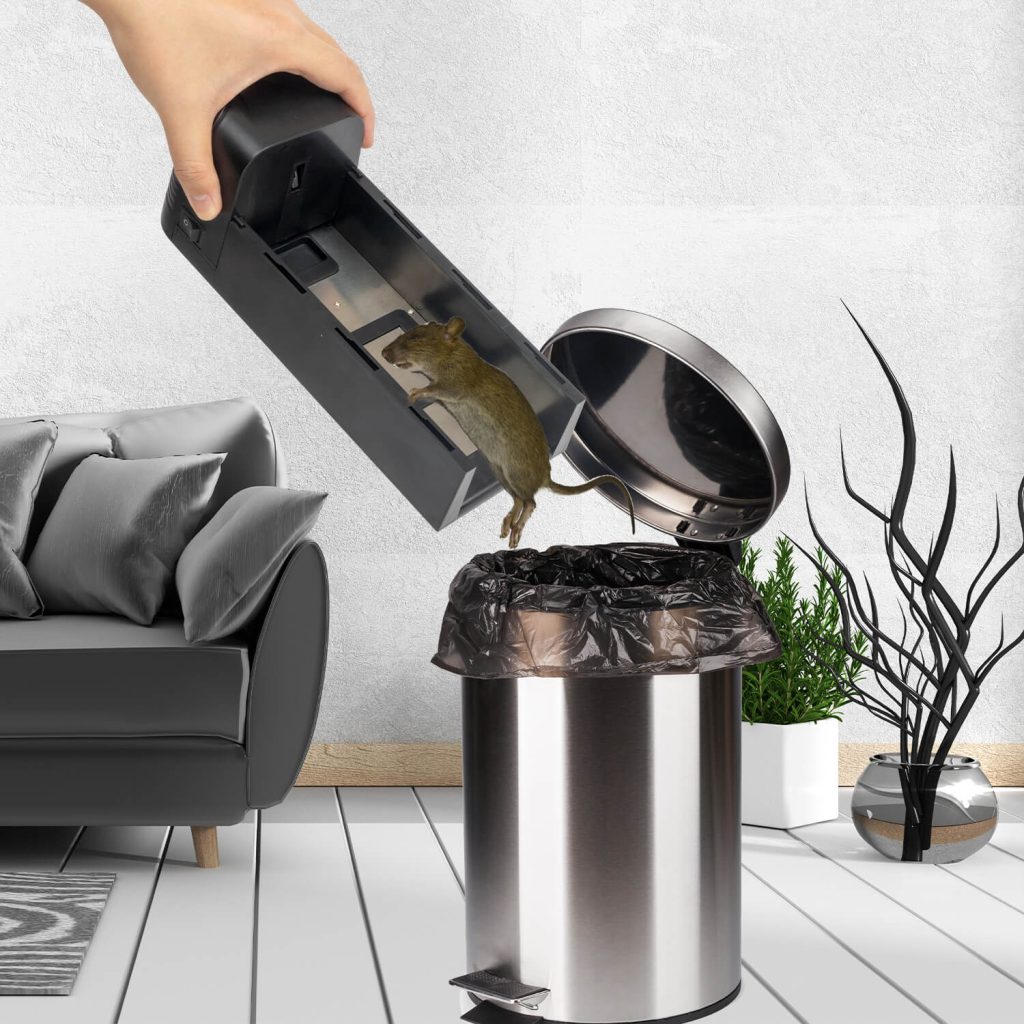

To dispose of the dead mice, simply slide open the collection drawer and discard the dead mice directly into the trash for clean, no-touch disposal.

electric mouse trap


1. Charge the electrical rat killer with the included USB cable, connect to DC9V/1.5A adapter, the green LED remains indicating it’s fully charged.
2. Use a toothpick or cotton swab to apply a small amount of peanut butter or anything high in protein around the conductive plate.
3. Place the unit where you have seen signs of rodent activity or along the wall where rodents primarily travel. It should be placed lengthwise against the wall with the entrance hole nearest the wall.
4. Press down power switch “1”, green-red light flashes alternately. Then the red LED blinks every 5 seconds, the unit will start to work.
5. When rodent goes into the trap, it’ll trigger the unit to discharge 13000V high voltage current, red LED remains 180s.
6. Green LED blinks every 2s, safety mode starts, no more high voltage discharges. Please turn it off and dump the rodents, and turn it on for another shock.

electric mouse trap

Experiment result by prototype:

electric mouse trap


Model No.AR03-1
Casing Material:ABS
Power Supply:DC 9V/1.5A
Battery:2*rechargeable 18650
Power Consumption:Standby Mode=4mA
Shock Mode=700mA
High Voltage:13000V
Shock Duration:2 minutes

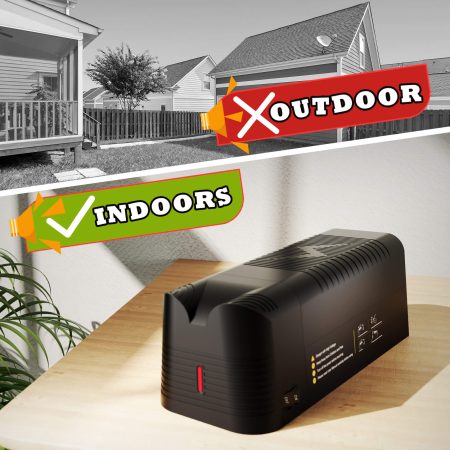

Applicable Area:Indoors use only
PackageColor box (Customized acceptable)
Color box size(1 pack)330*116*116mm
Carton size350*490*490mm
Qty. per carton16 PCS
N.W. per carton9.92KG
G.W. per carton11.62KG
Qty. per 20' FCL4,944PCS
